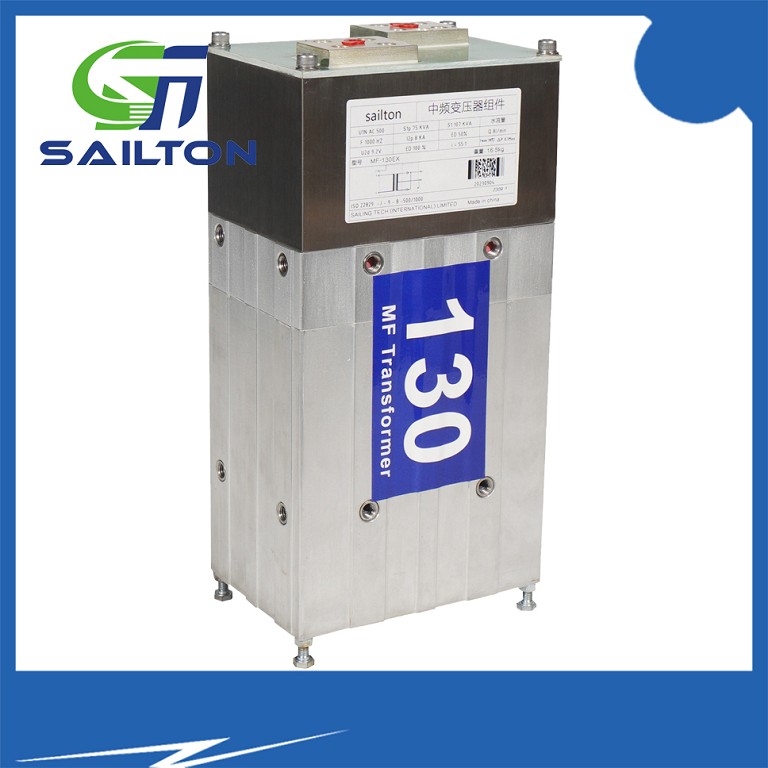

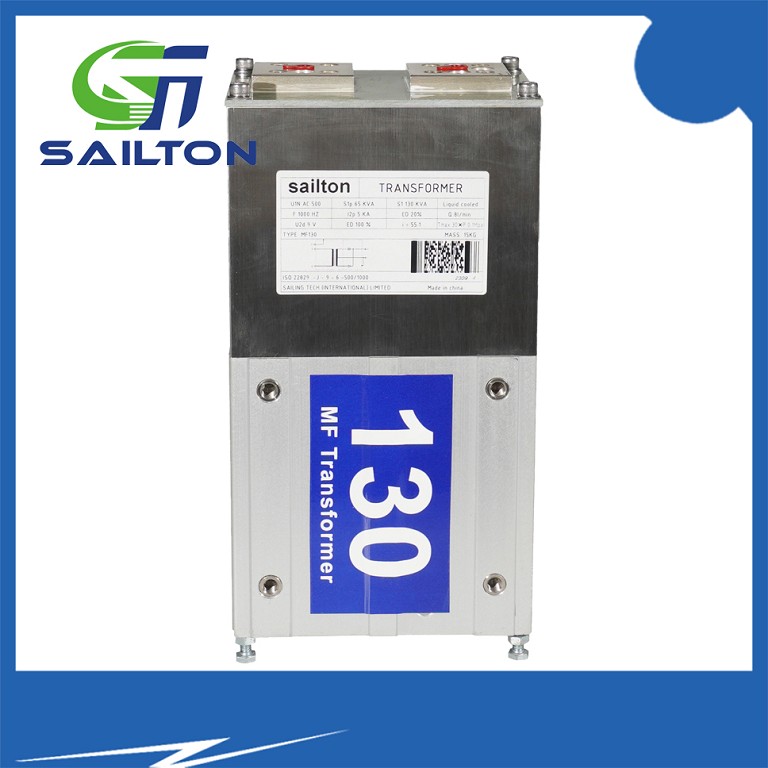

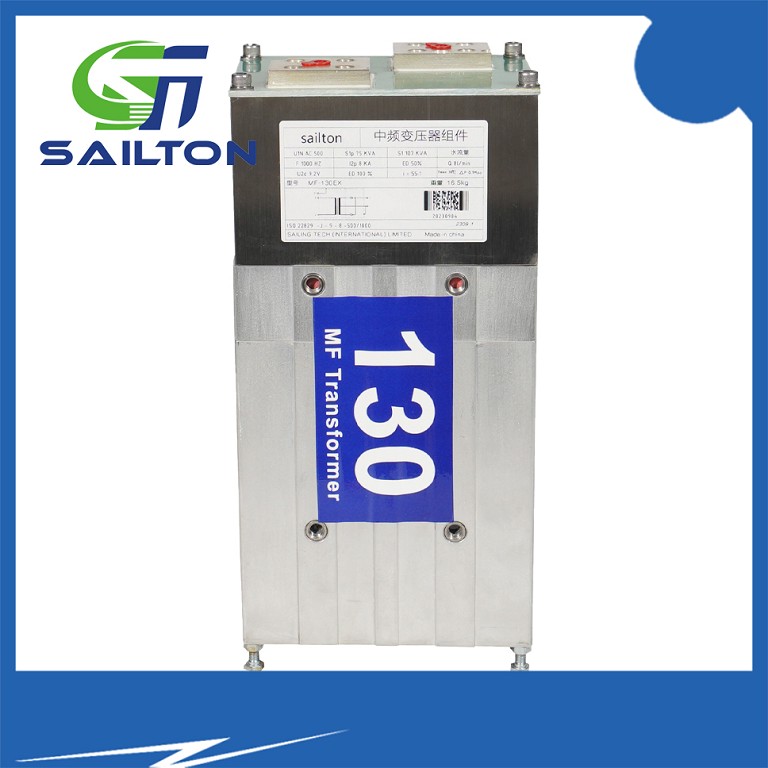

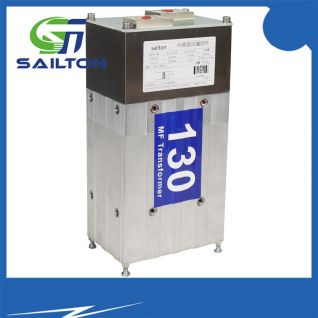

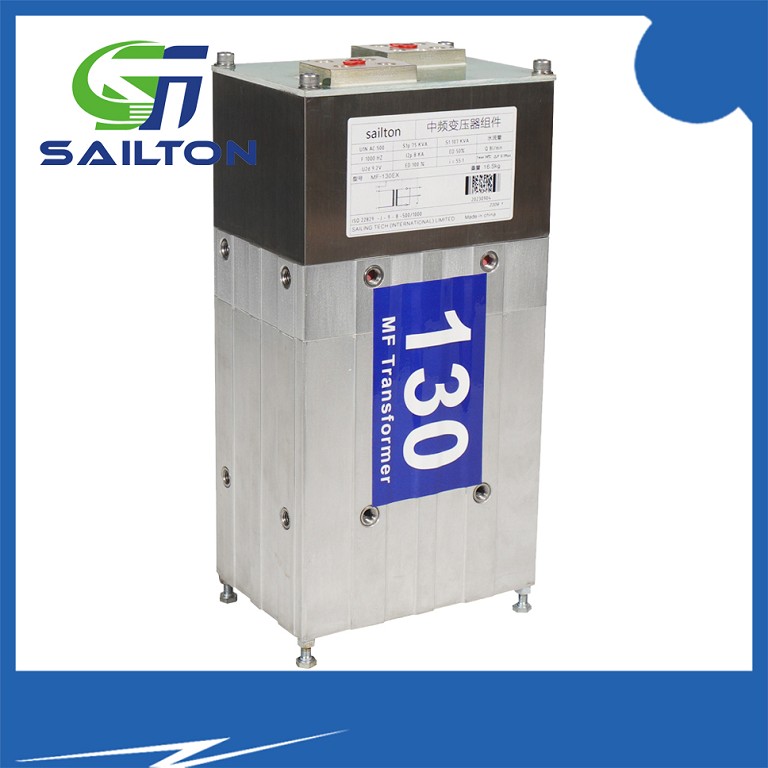

Invert Stationary MF Resistance Spot welder transformers MF130-R6130
For all kinds of intermediate frequency, power frequency resistance welding machine.
Such as automobile welding clamp,seam welding machine, mesh welding machine and so on.
Invert Stationary Medium-frequency (MF) Resistance Spot welder transformers
Application
1) Spot Welder 2) SEAM Welder 3) Projection Welder 4) High Frequency Induction Heating
For all kinds of intermediate frequency, power frequency
resistance welding machine.Such as automobile welding clamp,
seam welding machine, mesh welding machine and so on.
Brief introduction
Medium-frequency (MF) transformers are a result of recent advances in resistance welding technology.
They are powered by a transistor inverter, supplying square wave AC 500 V @ 1000 Hz which is converted
by the MF transformer to a low voltage high current AC. This low voltage AC current is rectified to DC by
a diode block built into the transformer.The higher operating frequency of an MF system allows efficient
energy conversion using a smaller and lighter transformer.Other benefits with MF transformers used in
portable and robotic welding guns are:The reactance of the welding loop only limits the upslope and down
slope of the welding current, while the peak welding current in limited only by the welding loop’s resistance.
The net result is again smaller transformer, especially when welding with large throat, high-impedance guns.
MF welding is less demanding on the plant power system. The MF inverter draws balanced line current from
all 3 phases and operates at a high power factor (0.9).With MF transformers the peak welding current almost
equals its RMS value, which helps to obtain quality welds with no splash and constantstrength even at lower
pressure.The high frequency permits much faster – 1000 times per second - process control, which again results
in better weld quality.

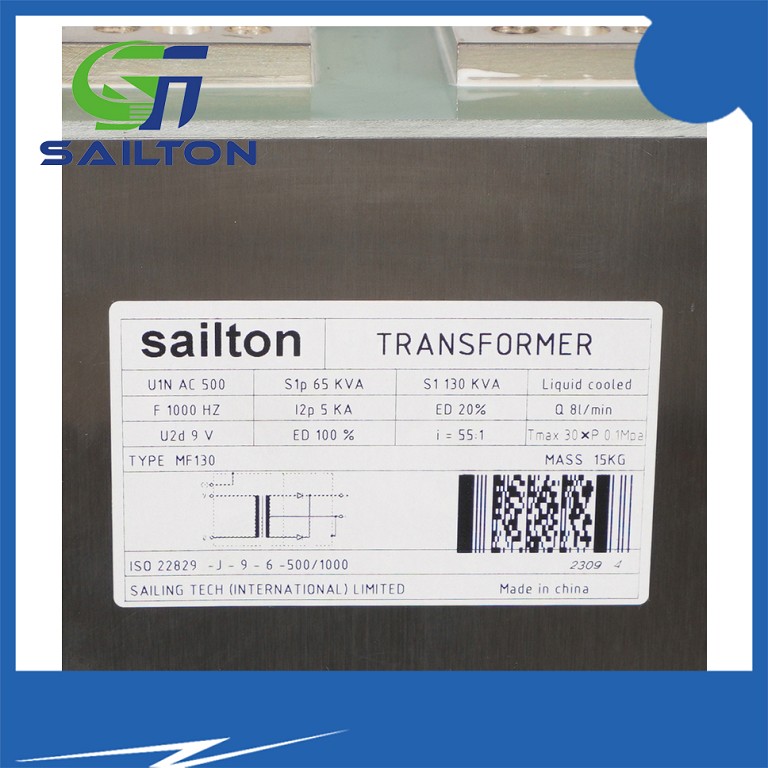

| 型号 / TYPE | Unit | MF130-R6130 | MF170-R6170 | ||
| 初级额定电压 /primary nominal voltage | v | 500 | 500 | ||
| 频率 / frequency | Hz | 1000 | 1000 | ||
| 负载持续率为 20%的标称功率/ nominal power at 20%ED | kVA | 130 | 170 | ||
| 负载持续率为 50%的标称功率/ nominal power at 50%ED |
kVA | 75 | 105 | ||
| 负载持续率为 100%的标称功率/ nominal power at 100%ED |
kVA | 50 | 80 | ||
| 次级电压/ secondary voltage | V | 9 | 9 | ||
| 持续直流电流 / permanent DC current 100% | A | 6000 | 8000 | ||
| 变压比 / turns ratio | N1/N2 | 55:1 | 55:1 | ||
| 重量 / weight | kg | 20 | 20 | ||
| 2×150℃，1×70℃ | 2×150℃，1×70℃ | ||||
| 温度开关 / temperature switch | 温度开关(热保) | 温度开关(热保) | |||
| /Temperature switch | /Temperature switch | ||||
| 绝缘等级 /insulation class | F(155°C) | F(155°C) | |||

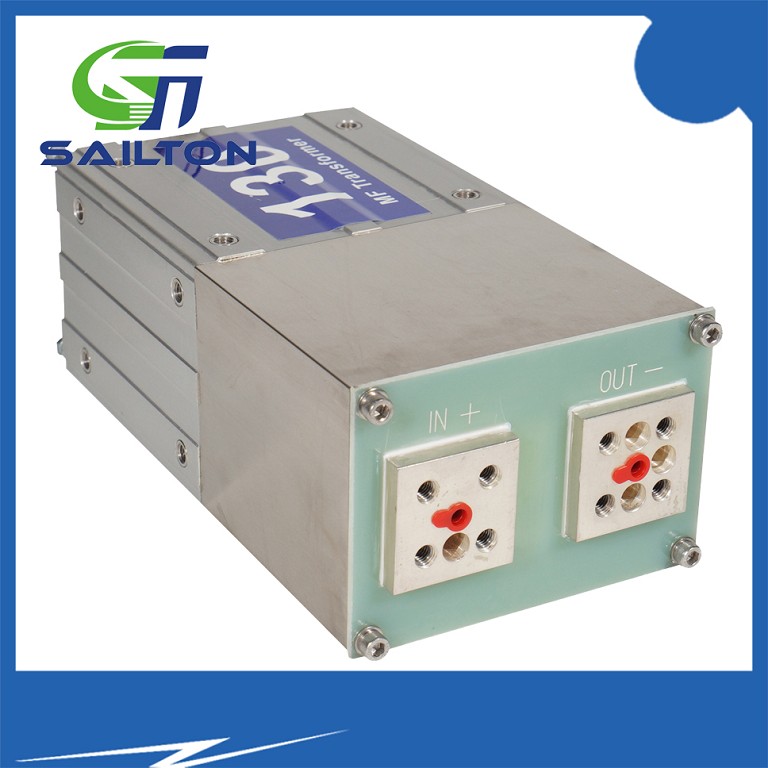

| 电接头/ Electrical connections | 初级/primary | 螺口 / thread | mm | M8 | M8 |
| 深 / depth | mm | 10 | 10 | ||
| 次级/secondary | 螺口 / thread | mm | M10 | M10 | |
| 深 /depth | mm | 15 | 15 | ||
| 冷却水流量/ cooling water quant. Q Tmax. 30℃ | I/ min | 6 | 6 | ||
| 压差 / pressure drop p (Q=6l / min ) | Mpa | 0.6 | 0.6 | ||
Load endurance chart
MF130-R6130 4L/min load diagramLoad diagram for MF130-R6130 4L/min |
MF170-R6170 4L/min load diagramLoad diagram for MF170-R6170 4L/min |
 |
 |
- Circuit diagram names
-
U, V Primary connection to PSI
-
T1 Connection of temperature sensor for monitoring the primary winding
-
Color coding: 2 x black (switch 1)
-
2 x white (switch 2)
-
T2 Connection of temperatur sensor for diode monitoring:
-
Color coding: 2 x red
-
+ , - Secondary connection to electrodes
