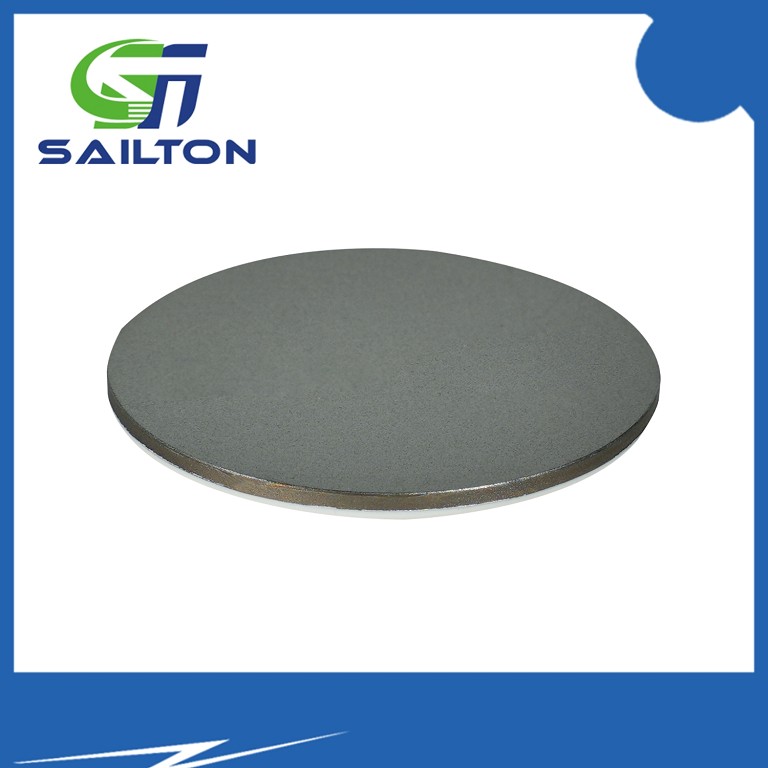

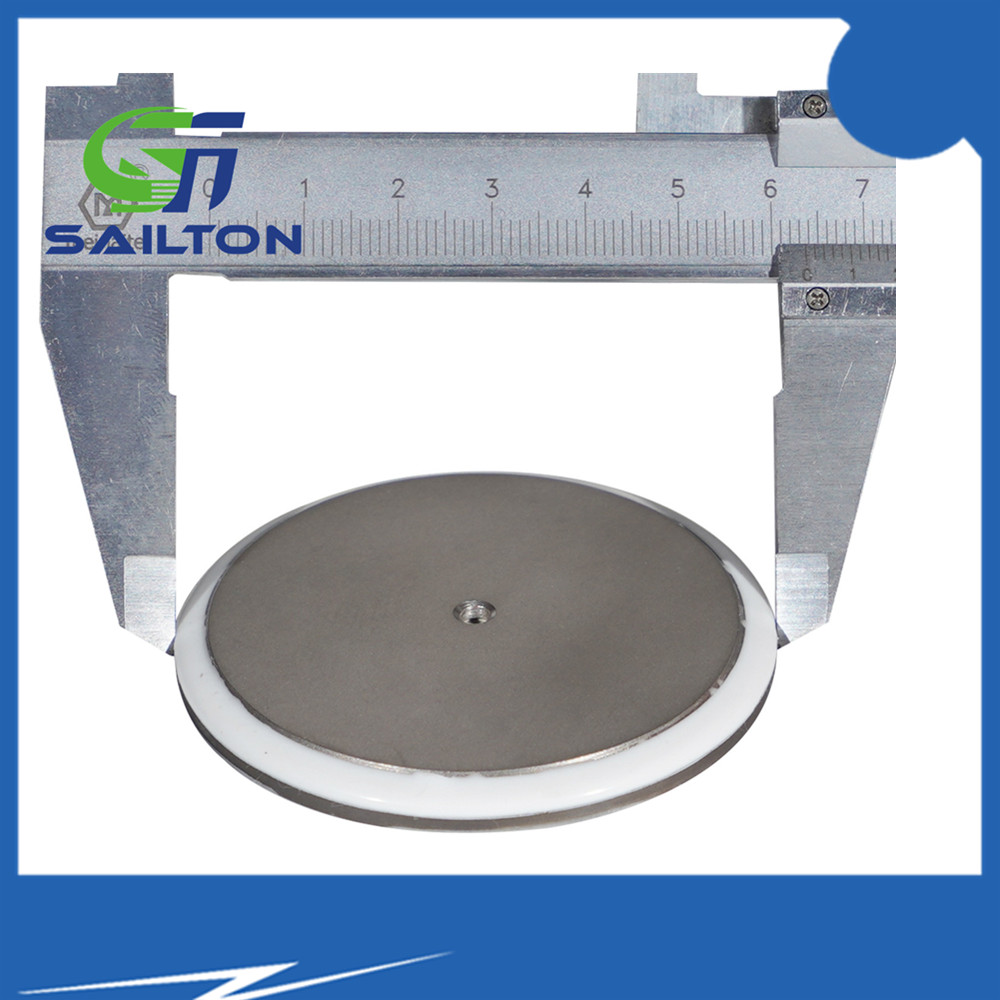

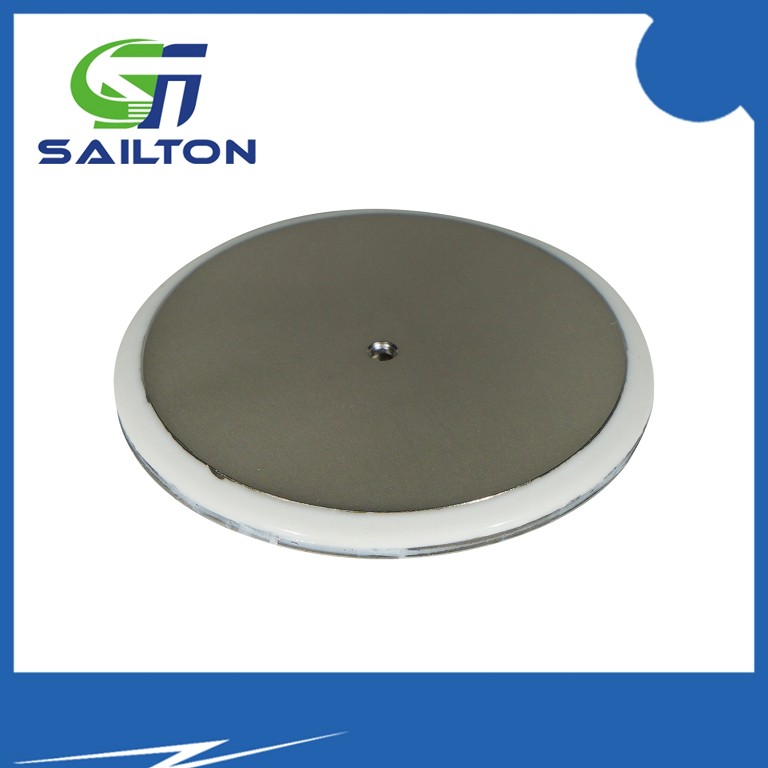

Product ID : SAILTON ZP13500/02-06
Product Attributes :

Welding Diodes

Designed for medium frequency welding euipment

High reliability in welding machine

Very low on-state voltage

Very low thermal resistance

Up to 2000HZ

Product Description

Sailton Brand High Reliability Medium Frequency Welding Diodes ZP13500/02-06

Welding diode is a high current low voltage semiconductor device used on medium frequency spot welding machine,MFDC spot welder,seam welder.Its current range are from 7100A to 13500A.Voltage is 200V or 400V.Welding diodes also are known as“Welder Diodes”,”Welder Rectifier Diodes”.Welding diodes are the core rectifier components during resistance welder.As welding rectifier diode output.

We are Chinese largest welding diodes production base.Welding diodes product line include 7100A,9000A,12000A house type welder diodes and 10500A,13500A houseless type welding diodes.Because of stable quality and long working time,has won many clients’s praise.E.g. resistance welding machine manufacturer,welding robotic service providers,automobile manufacturers etc.



Feature

Designed for medium frequency welding euipment

High reliability in welding machine

Very low on-state voltage

Very low thermal resistance

Up to 2000HZ

High current up to 18000A



Application

For all kinds of intermediate frequency, power frequency resistance welding machine.

Such as automobile welding clamp,seam welding machine, mesh welding machine and so on.



Welding diode for medium frequency sopt welding

We develop and produce high current welding diode for medium frequency spot welding application.

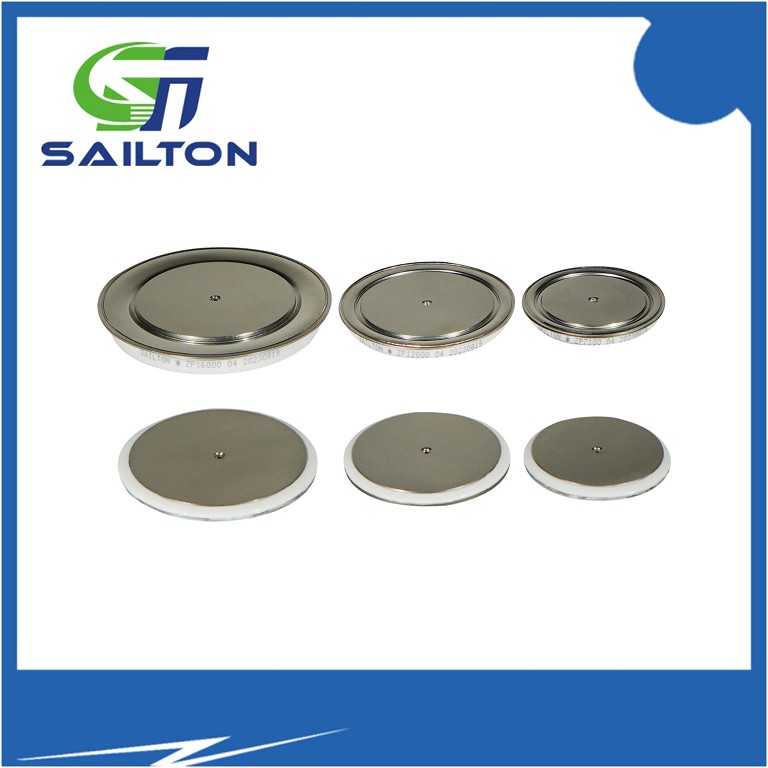

Our welding diode current have 4000A,7100A,9200A,10500A,12000A,13500A,16000A,18000A.

Its voltage is 200V-600V.



Part No. IF(av) VRRM IFSM T VTO rT TVJM RthJc RthCH F Outline Housing
Tc=85°C 50HZ 50HZ TVJM TVJM
(A) (V) (A) A²S•10³ V C (C/W) (C/W) KN
ZP4000/02-06 5000 200-600 45 10 0.80 0.030 170 0.010 0.005 20-25 D1 Housing
ZP7100/02-06 7100 200-600 55 15 0.75 0.025 170 0.010 0.005 20-25 D1 Housing
ZP10500/02-06 10500 200-600 70 25 0.80 0.03 170 0.0050 0.0026 30-50 D18 Hosuingless

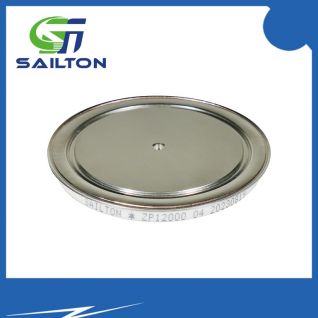

ZP12000/02-06 11000 200-600 85 36 0.75 0.025 170 0.006 0.003 35-40 D2 Housing
ZP13500/02-06 13500 200-600 85 36 0.75 0.02 170 0.0039 0.0025 35-70 D19 Housingless
ZP16000/02-06 16000 200-600 120 72 0.80 0.019 190 0.004 0.002 50-60

D3

Housing
ZP18000/02-06 18000 200-600 120 72 0.80 0.02 190 0.0035 0.002 70-80 D20

Housingless



Welding diode on medium frequency welding system circuit diagram:


                       welding diode for medium frequency spot welding

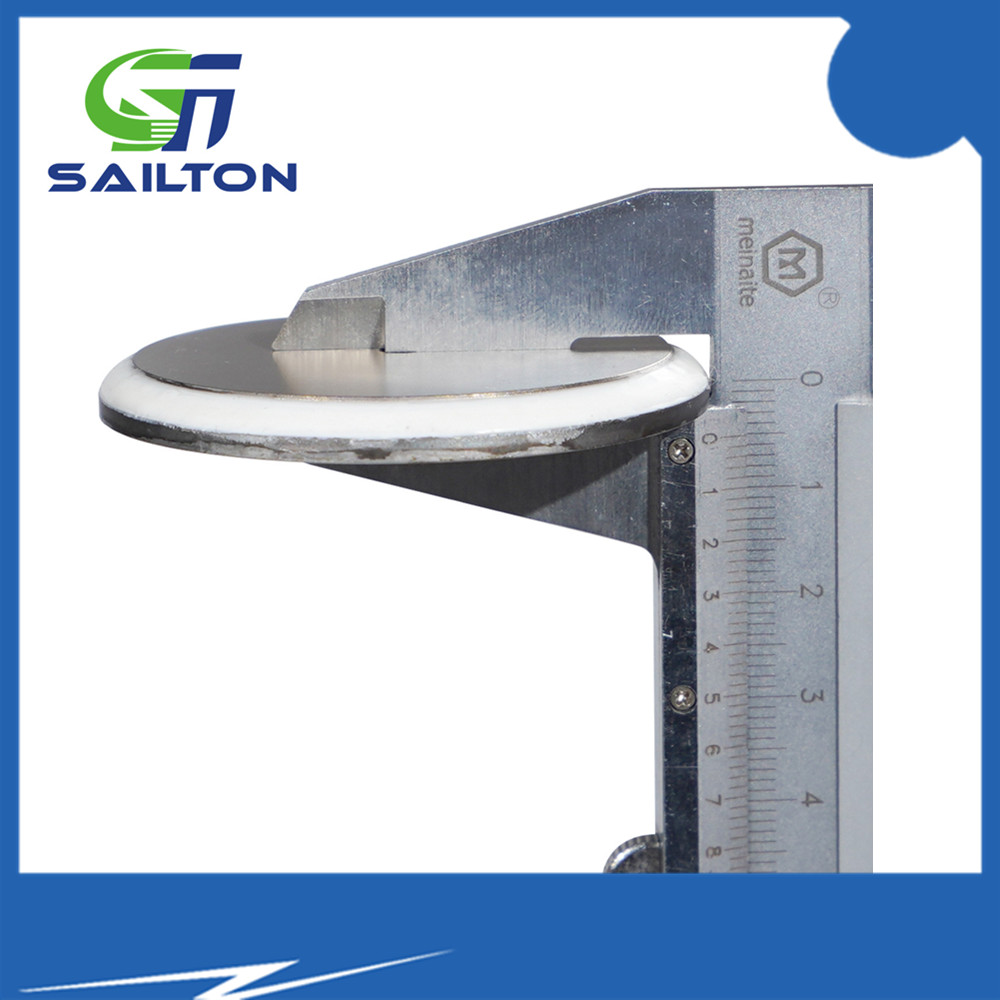

Outline





Application picture:

Welding diodes for reverse stationary spot welders and robotic/automotive welding guns




High-density rectifiers for stone mill resistance furnaces:
